TYSSO POS TP1715 , I5 , 4 GB , 128 GB SSD , 15 " Touch Screen , With Second 9 " Screen
Couldn't load pickup availability
- A few left in stock!
Description
The 15-inch Full Flat Fanless POS Terminal hardware is space-saving and comes equipped with a powerful fanless processor, ensuring quiet operation and minimal heat generation. The full flat fanless POS System hardware can also integrate with wide variety of optional accessories such as i-Button and Magnetic Stripe Card Reader (MSR), which is easy for users to install or replace.

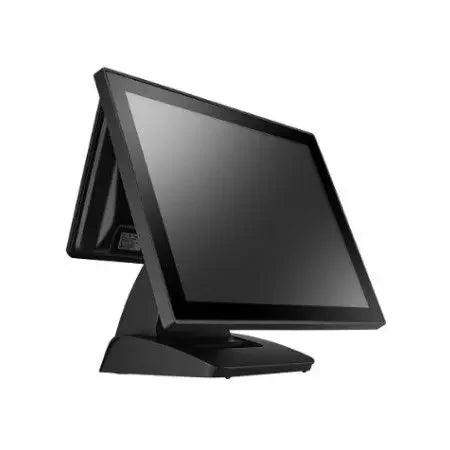

Main View of POS System TP-1715U
Functional All-In-One Resistive Or Capacitive Touch POS Terminal Hardware
The 15-inch POS system hardware is constructed with the top quality die-cast metal and sleek stand, which fits for operating in the limited counter space. The POS system hardware is a decent, smart and cost-effective POS System hardware that fits almost every cost-conscious customer.
Die-Cast Metal Sleek Stand
Versatile I/O Ports
The All-In-One POS system hardware is equipped with 15-inch LCD screen, which supports multi-touch operation such as True-Flat Projected Capacitive Multi Touch (PCAP) and True-Flat 5-wire Resistive Touch (RTP). The POS system hardware provides rich I/O ports for users to install or replace peripherals such as 2nd Display, Customer Display, MSR and i-Button. The modular design of TP-1715U ensure high serviceability and reliability.
POS System Hardware with Customer Display and MSR
Features
- Supports Powerful, Mobile and Fanless Processors
- 7th Generation Intel® Core™ i5 High performance CPU
- DDR4 RAM up to 32 GB (Dual channel)
- M.2 SATA and PCIe*4 maximized the access speed and efficiency
- Removable 2.5" SSD/HDD (option)
- Fast Installation and Easy Serviceability
- Multi - I/O Interfaces for Peripherals
- Rear Cover Construction for Exceptional Thermal Dissipation
- IP65 for Front Bezel Compliant
- Folding base configurable for user flexibility and shipping cost saving
Specification
| Model | TP-1715U | |
|---|---|---|
| Processor | 7th Generation Kaby Lake Intel® Core™ i5-7267U Processor (4M Cache, Max. 3.50 GHz) | |
| System Memory | 2 x 260 pin DDR4 SO-DIMM, up to 32GB | |
| Storage | 1 x M.2 SATA and PCIe SSD 1 x Removable 2.5" SATA SSD/HDD drive bay |
|
| LCD Panel | 15-Inch TFT LCD with LED Backlight 1024 (W) RGB x 768 (H) |
|
| Touch Panel | True-Flat Projected Capacitive Multi Touch True-Flat 5-wire Resistive Touch |
|
| Speaker | 1 x 2W High Quality Speaker | |
| I/O Interface | ||
| USB | 4 x USB 3.0 type A (Bottom) 2 x USB 2.0 (Panel Side) |
|
| LAN | 1 x RJ45 10 / 100 / 1000 Mbps Giga Ethernet | |
| COM | 3 x COM (RJ45), w/ RI/ 5V/ 12V (Bottom) 1 x COM (USB) selection by Jumper (Panel Side) |
|
| LPT | 1 x DB25 Parallel Port (Option) | |
| VGA | 1 x DB-15 VGA Port (Option) | |
| HDMI | 1 x HDMI Port | |
| Audio | 1 x Line-out and 1 x MIC-in | |
| Cash Drawer | 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper | |
| DC Power Out | 1 x +12V Power Out | |
| DC Power In | 1 x Standard DIN 4PIN type | |
| Power Management | ||
| Power Adapter | 12V@7.5A, 90W Adapter | |
| Mechanical & Environmental | ||
| Dust and Water | IP65 on Front Bezel | |
| Tilt Adjustment | 15° ~ 85° (w/ Standard Base) 0° ~ 90° (w/ Folding Base) |
|
| Dimension | 355 (W) x 303 (H) x 205 (D) mm (w/ Standard Base) 355 (W) x 312 (H) x 200 (D) mm (w/ Folding Base) |
|
| Weight | 4.6 kg (w/ Standard Base) 6.6 kg (w/ Folding Base) |
|
| Certification | CE/ FCC/ LVD | |
| Operation System | POS Ready 7/ Windows Embedded 8.1 Industry/ Windows 10 IoT/ Linux (Ubuntu) | |
| TPM | TPM 2.0 (optional) | |
| Operation Condition | 0°C to +40°C/ 20 to 80% without condensation | |
| Storage Condition | -20°C to +55°C / 20 to 85% without condensation | |
| Optional Accessories | ||
| 2nd Display | 8" (800 x 600), 9.7" (1024 x 768), 10.1" (1280 x 800) and 15" (1024 x 768) LCD Display Optional PCAP Touchscreen | |
| Customer Display | VFD and LCD Customer Display | |
| MSR | Bi-directional, Comply with ISO 7811 and Three Track support | |
| Combo Reader | MSR - Comply with ISO 7811/ JIS II and Three Track RFID - Comply Mifare, ISO14443AB-4 and Felica |
|
| i-Button | Dallas i-button Reader | |
| Wi-Fi | Wi-Fi IEEE 802.11 a/ b/ g/ n/ ac | |
| LTE | 4G LTE Mini-PCIe with External Antenna Rod | |
| VESA Bracket | VESA-Compatible, 75 x 75 (mm) | |
