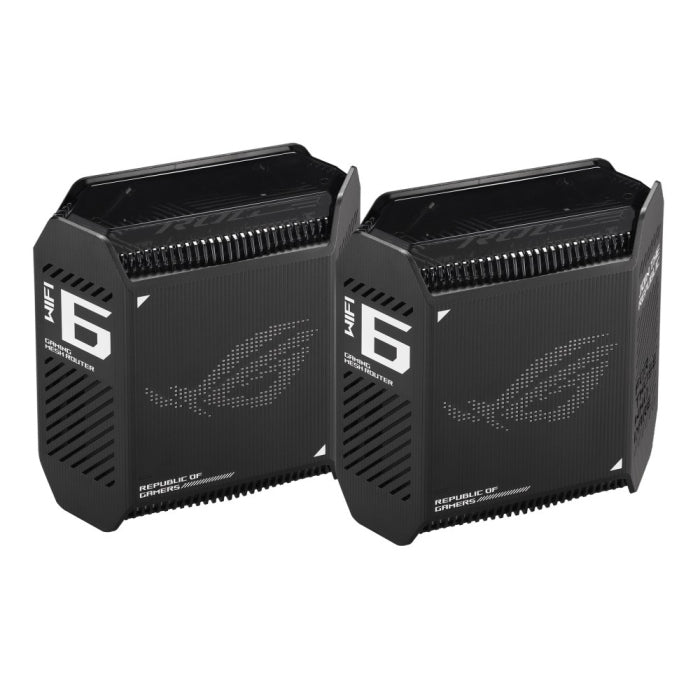

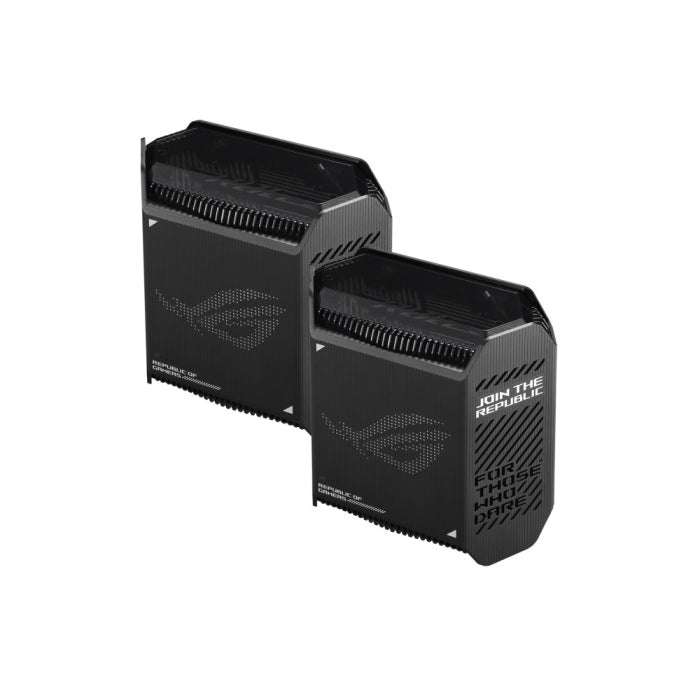

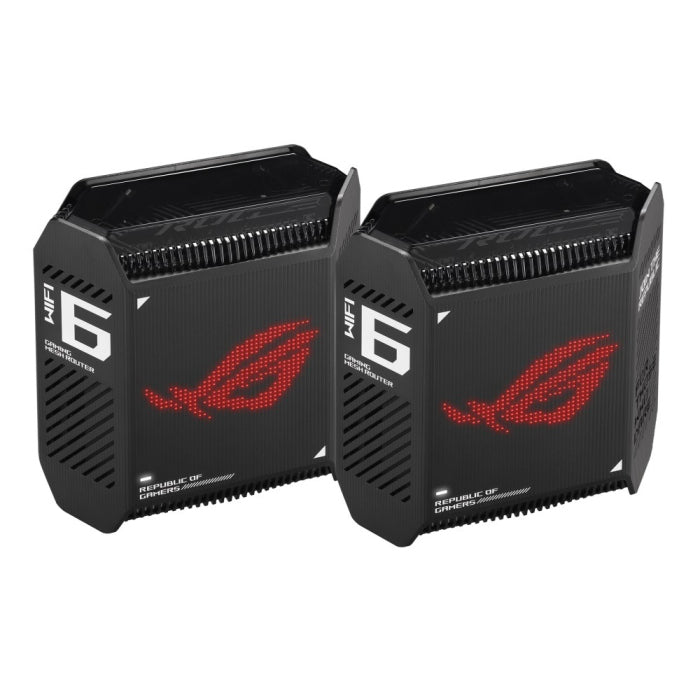

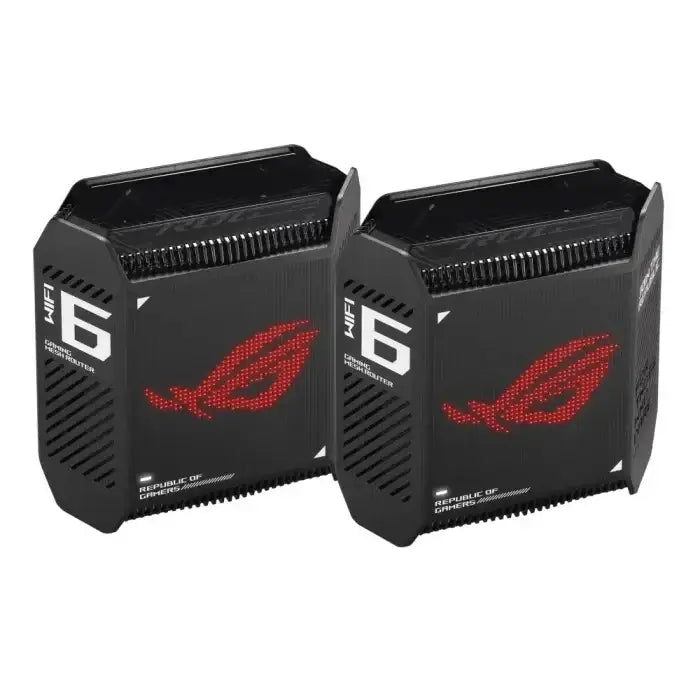

ROG Rapture GT6 WiFI 6 Tr-Band Gaming Mesh System ( Pack of 2) - Black Color

Model No

Asus ROG Rapture GT6 WiFi 6 Tri-Band Gaming Mesh System  ( Pack of 2) - Black

Part No

90IG07F0-MU9A20

Color

Black

Network Standard

WiFi 6 (802.11ax)

IPv4

IPv6

Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

AX10000 ultimate AX performance

Data Rate

2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps

5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

Internal antenna x 9

Transmit/Receive

2.4GHz 2x2

5GHz-1 4x4

5GHz-2 4x4

Processor

1.7GHz tri-core processor

Memory

256MB Flash

512MB DDR4 RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

2.4G Hz

5 GHz-1

5 GHz-2

Operating Mode

Wireless router mode

Access point mode

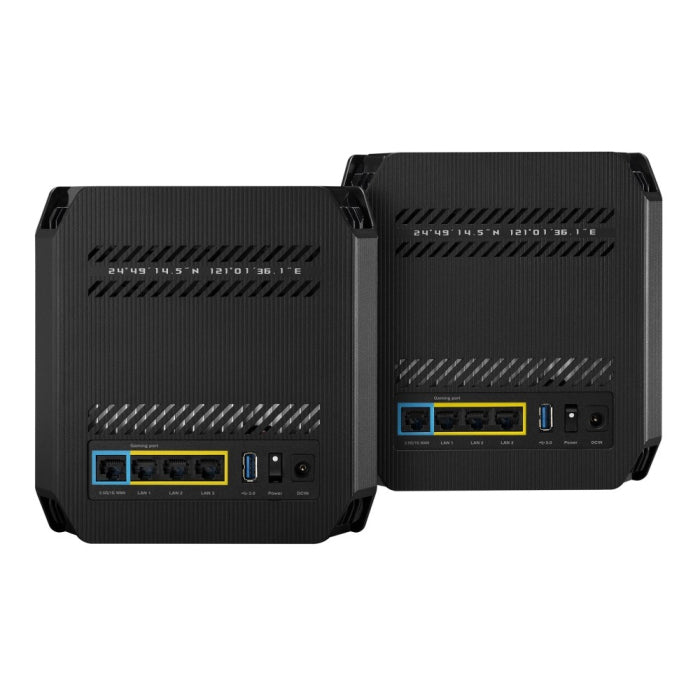

Ports

1 x 2.5 Gigabit WAN Port

3 x Gigabit LAN Ports

1 x USB 3.2 Gen 1x1 Port

Button

WPS Button

Reset Button

Power Switch

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current

AiMesh

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Game Boost / Acceleration

Game Radar

WTFast

ROG_First

OpenNAT (Game Profile)

Gaming Port

Parental Control

"Allow you to block access to unwanted websites and apps."

Parental Control Customized Internet Schedule

Traffic Control

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Guest Network Connection time limit

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Wi-Fi Radar

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

WAN

Dual WAN

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay

LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

Wake on LAN (WOL)

Security

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : Max 64 rules

• Maximum Firewall Network Service Filter : Max 32 rules

• Maximum Firewall URL Filter : Max 64 rules

USB application

4G / 5G Auto Mobile Tethering

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update

Weight

880 g

Package content

ROG Rapture GT6

RJ-45 Cable

Power Adapter

Quick Start Guide

Warranty Card
