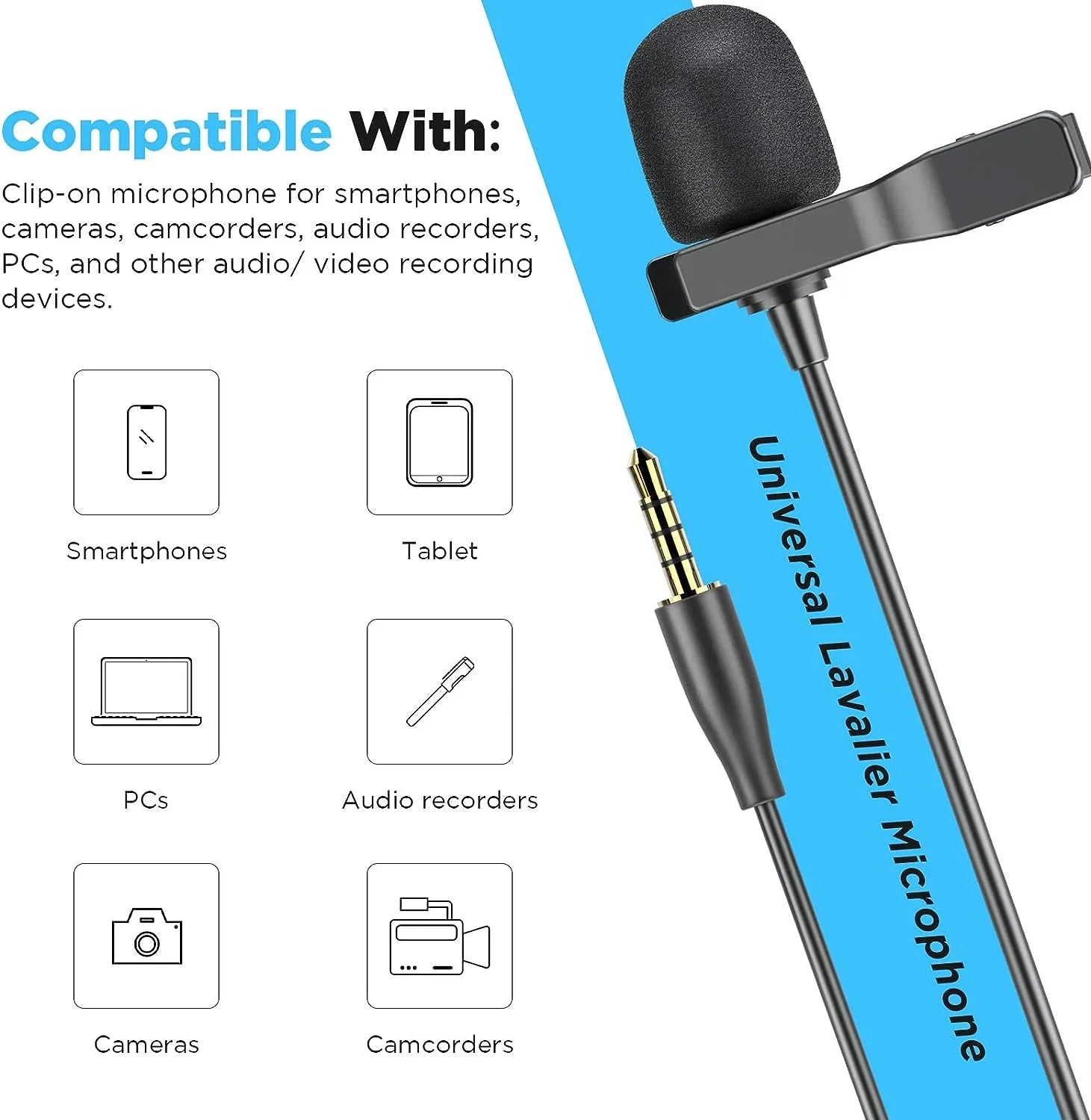

High-quality condenser clip-on microphone for smartphones, cameras, camcorders, audio recorders, PCs, and other audio/video recording devices with low handling noise.
Custom omnidirectional capsule inside for high-quality audio pick-up:
Two recording modes for different using scenarios:
No battery needed, powered by devices:
BY-M1S doesn’t need LR44 battery and it can be powered by the device directly.
How to use:
Specifications:
Custom omnidirectional capsule inside for high-quality audio pick-up:

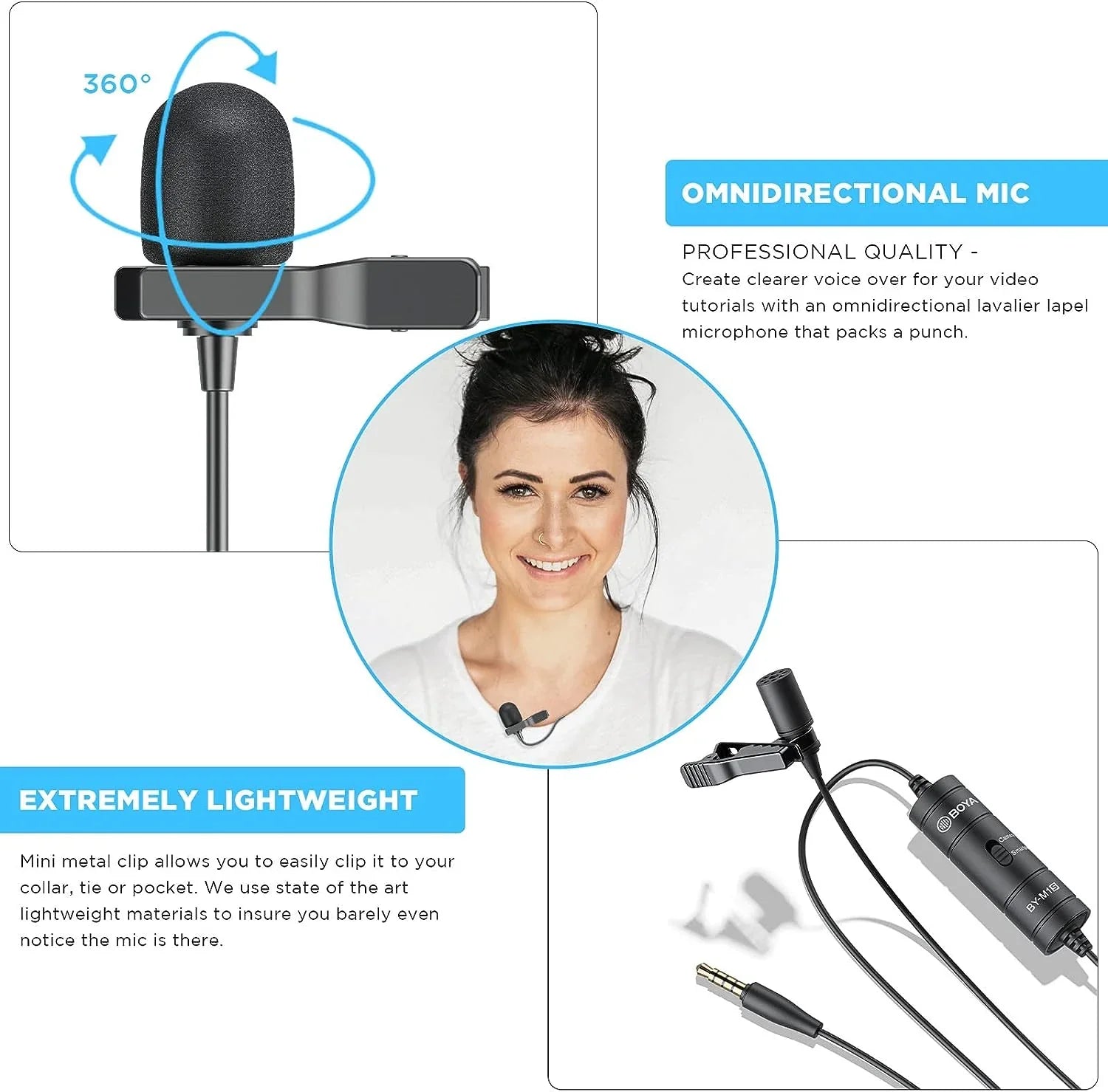

- Designed with an updated omnidirectional capsule inside and captures broadcast-quality sound from a 360-degree range and delivers it to your recording device via its 6m(20’) shielded cable. With the improved sensitivity, signal-to-noise, and flat frequency response, BY-M1S allows you to record every last audio detail with lower self-noise.
Two recording modes for different using scenarios:

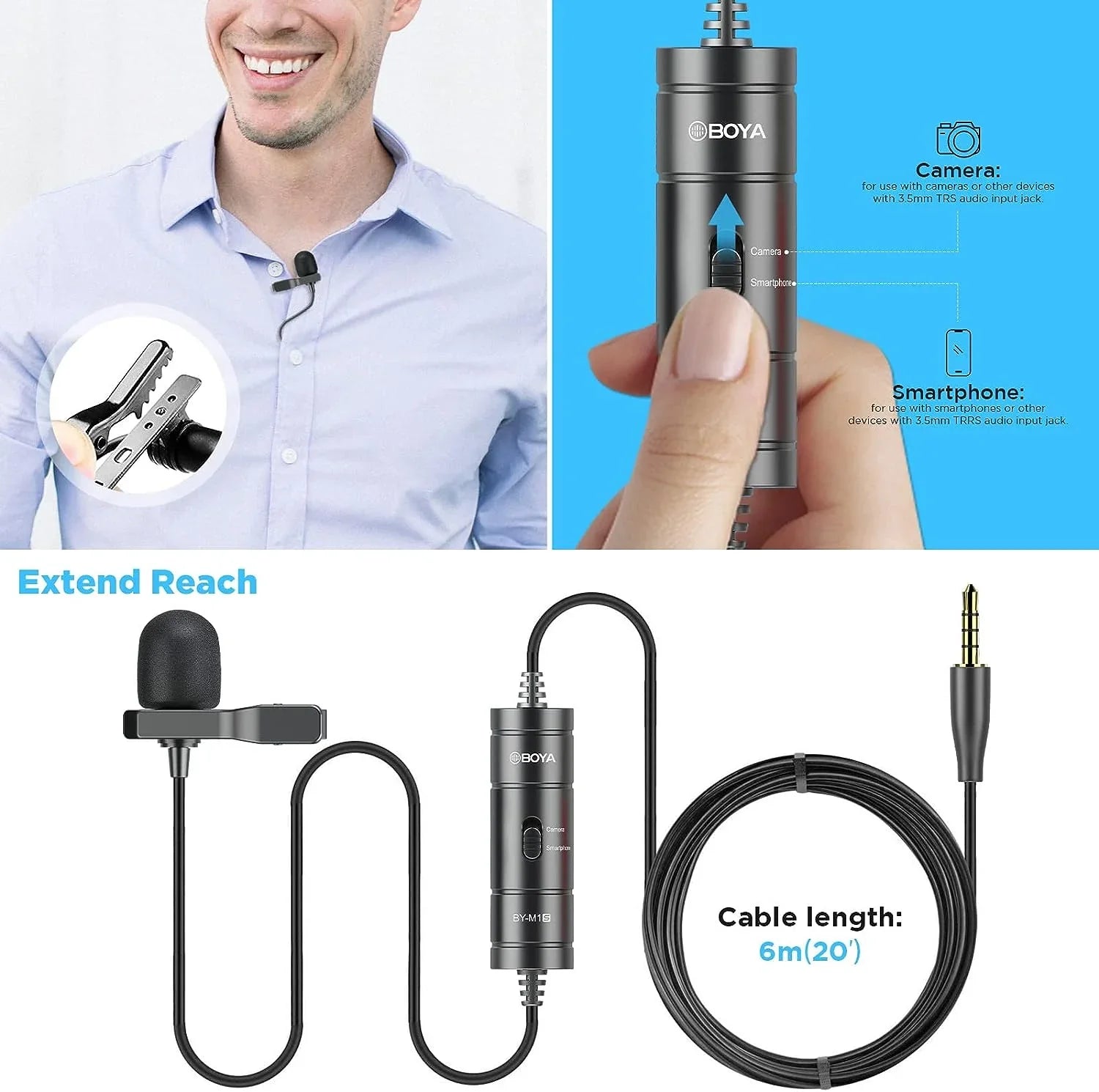

- Featuring a 3.5mm 4-pole TRRS output connector, you can connect BY-M1 to your camera or camcorder under “camera” mode, and also connect it to your smartphone or tablets when switching to “OFF/Smartphone” mode.
No battery needed, powered by devices:
BY-M1S doesn’t need LR44 battery and it can be powered by the device directly.
How to use:
- For Smartphones, tablets, etc: Switch off the microphone. Slide the button to Smartphone
- For DSLRs, Camcorders, Audio recorders, PC, etc: Switch on the microphone. Slide the button to Camera
Specifications:
- Mic Capsule: Condenser capsule
- Polar pattern: Omnidirectional
- Sensitivity: 30dB,+/-3dB.f=1KHZ,Pin=1Pa，0dB=1V/Pa
- Frequency response: 50Hz-20kHz
- Signal-to-noise ratio: 78dB
- Output impedance: 600Ω
- Connector: 3.5mm(1/8’’) plug
- Power requirements: Supplied by external devices
- Cable length: 6.0m
- Weight: 68g
