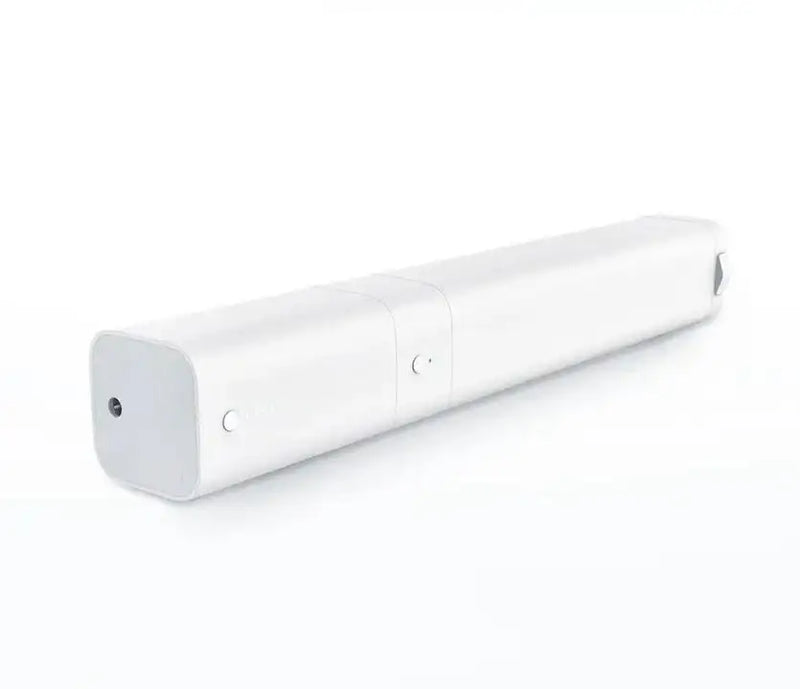

Aqara Smart Curtain Motor | B1 ZNCLDJ12LM

Aqara Smart Curtain Motor B1 ZNCLDJ12LM

The Aqara Smart Curtain Motor B1 is a smart device designed to automate your curtains and seamlessly fit into modern smart homes. This curtain motor allows you to open and close your curtains with ease, providing advanced convenience and control right at your fingertips. With its compact design, the Aqara Smart Curtain Motor B1 measures 49.5 x 49.5 x 349.5mm, including the battery, and weighs approximately 1.48 kg. It is perfect for a wide range of curtain rails and window arrangements.

Key Product Specifications

• Product Name: Aqara Smart Curtain Motor B1
• Product Model: ZNCLDJ12LM
• Motor Size: 49.5 x 49.5 x 349.5mm (including battery)
• Weight (Gross): About 1.48 kg
• Power Supply Mode: Power adapter, lithium battery
• Power Adapter Input Voltage: 100-240V~50/60Hz1A
• Power Cord Length: 1.5 meters
• Lithium Battery Rated Capacity: 3030mAh
• Rated Torque: 2N·m
• Working System: S212min
• Rated Power: 28 watts
• Protection Grade: IP40
• Moving Speed: 12 cm/s
• Rail Loading: 50kg
• Wireless Connection: ZigBee
• Executive Standard: Q/QLML016
• Working Temperature: -20℃~+55℃
• Working Humidity: 10%~90%RH, non-condensing
• Special Note: This model contains the engine only. Rail mount is not included!

Product Overview

The Aqara Smart Curtain Motor B1 is engineered for quiet yet powerful performance. The motor uses advanced technology and can move curtains at a rate of 12 centimeters per second. It is designed to support rail loads up to 50 kilograms, making it suitable for heavy curtains. The motor’s robust design is coupled with a high-capacity lithium battery rated at 3030mAh. This allows for significant usage between charges, making it both convenient and energy-efficient for any home environment.

Flexible Power Options

This curtain motor supports dual power modes: a standard power adapter and a lithium battery. The adapter operates on a voltage range of 100-240V at 50/60Hz, which makes it suitable for homes worldwide. The 1.5-meter power cord adds further flexibility for installation. The rechargeable lithium battery is especially helpful for locations without easy access to outlets. Its high capacity allows your smart curtain solution to run smoothly regardless of your chosen power source. Enjoy the convenience of wireless installation without complicated wiring.

Durability and Working Conditions

The Aqara Smart Curtain Motor B1 is built to last. The product is constructed to withstand a variety of environmental conditions, with an operational temperature range from -20℃ to +55℃. It can function reliably in both cold and hot climates, while the supported humidity range of 10% to 90% RH (non-condensing) ensures sturdy performance in diverse indoor settings. With an IP40 protection grade, it is protected from solid objects and dust intrusion, helping safeguard the internal components for extended durability.

Smart Technology Integration

This motor supports ZigBee wireless communication, allowing it to integrate easily into your smart home environment. Once connected to a compatible smart hub, you can control your curtains via your smartphone or integrate it with home automation routines. Open or close your curtains remotely, schedule curtain movements, or link them with other smart devices to create a fully automated home experience. The Aqara ecosystem is designed for easy expansion and reliable connectivity.

Easy Installation and Versatile Application

Installing the Aqara Smart Curtain Motor B1 is straightforward. Its compact and lightweight form factor makes it easy to handle and fit onto most curtain rails. Please note that the package only includes the engine—the rail mount is not included. This modular approach allows you to pair it with existing or compatible tracks for a customized smart curtain solution. Whether for living rooms, bedrooms, or office spaces, this motor provides a discreet and practical upgrade for any window.

Why Choose Aqara Smart Curtain Motor B1?

• Automate your curtains for comfort, energy savings, and privacy.
• Supports both power adapter and rechargeable lithium battery options.
• Seamlessly integrates with ZigBee-compatible smart home systems.
• Quiet, efficient operation with durable, high-quality construction.
• Wide working environment range for versatile home applications.
• Simple installation process—engine only, customize with your own curtain tracks.

Important Note

This product package contains the curtain motor engine only. To complete your smart curtain system, ensure you purchase a compatible rail mount separately. This gives you the flexibility to select a track that best suits your space and curtain requirements while taking advantage of advanced automation features.

Summary

The Aqara Smart Curtain Motor B1 ZNCLDJ12LM is a modern solution designed to bring smart automation to your window treatments. It stands out for its smart technology, multiple power options, reliability, and ease of use. Upgrade your home or office with the convenience of automatic curtain control for improved lifestyle and energy management.
