Apple Mac Studio - M2 Max / 12-Core CPU / 30-Core GPU / 16-Core Neural Engine / 64GB RAM / 2TB SSD / 1YW

M2 Max

M2 Max brings power to tackle challenges of almost any size. From recording your own beats or mixing professional-quality music to editing your first video or adding effects to a feature-length film, the lightning-fast M2 Max has your back.

Fits right in

Run completely unrestrained within an unbelievably small footprint. Designed to fit perfectly under most displays, putting prodigious power and connectivity at arm’s reach, Mac Studio is a high-performance desktop unlike any other.

Powerful connections

Mac Studio lets you create the studio of your dreams with an array of 12 high-performance ports. Transfer photos and videos with an SDXC card reader. Connect to TVs or displays with an enhanced HDMI output that supports up to 8K resolution. Sync with next-generation accessories using Bluetooth 5.3. And enjoy up to two times faster throughput with Wi‑Fi 6E.

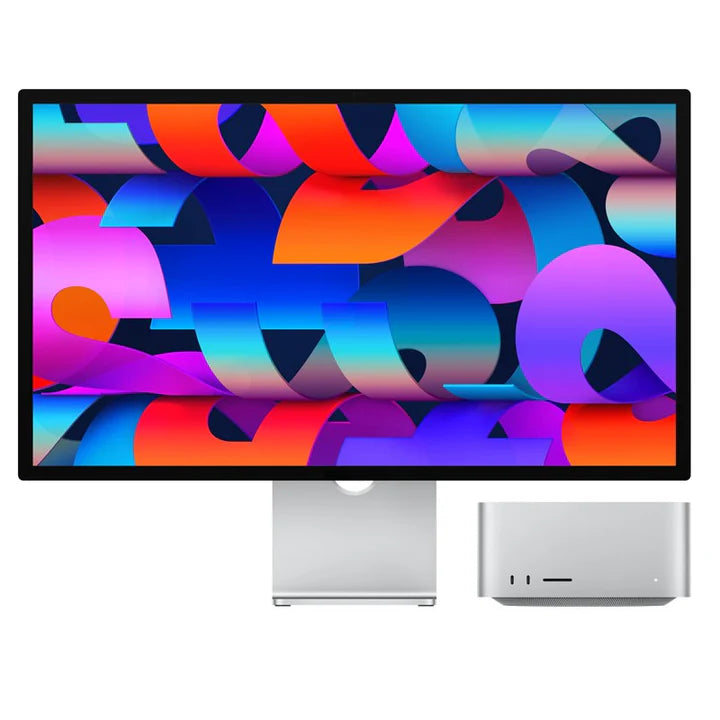

Dream team

We designed Mac Studio together with Studio Display for the ultimate studio setup. With its breathtaking 27" 5K Retina display, Ultra Wide camera with Center Stage, studio-quality three-mic array, six-speaker sound system with Spatial Audio, and optional nano-texture finish, Studio Display completes the full Mac experience.

Transform your studio

With its shockingly compact form factor and abundance of ports, Mac Studio lets you reimagine your workspace and unleash your creativity.

macOS and pro apps

macOS was not only designed to be powerful, intuitive, and reliably up to date, but also to scale with Apple silicon. This means the system automatically benefits from the increased graphics, massive memory, and powerful machine learning.

Designed with the earth in mind

100 percent recycled materials in its magnets and in the solder of the main logic board. Responsible packaging. A greener supply chain. Mac Studio was engineered to minimize its environmental impact.

Color

Silver

Processor

Apple M2 Max chip

12-core CPU

30-core GPU

16-core Neural Engine

400 GB/s memory bandwidth

Media engine

Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

Video decode engine

Two video encode engines

Two ProRes encode and decode engines

Configurable to:

M2 Max with 12-core CPU, 38-core GPU, and 16-core Neural Engine

RAM

64 GB unified memory

Storage

2 TB

Configurable to:

4 TB, or 8 TB

Display Support

M2 Max

Simultaneous support for up to five displays:

Four displays with 6K resolution at 60Hz over Thunderbolt and one display with 4K resolution at 60Hz over HDMI

Two displays with 6K resolution at 60Hz over Thunderbolt and one display with 8K resolution at 60Hz or 4K resolution at up to 240Hz over HDMI

Audio

Built-in speaker

3.5mm headphone jack with advanced support for high-impedance headphones

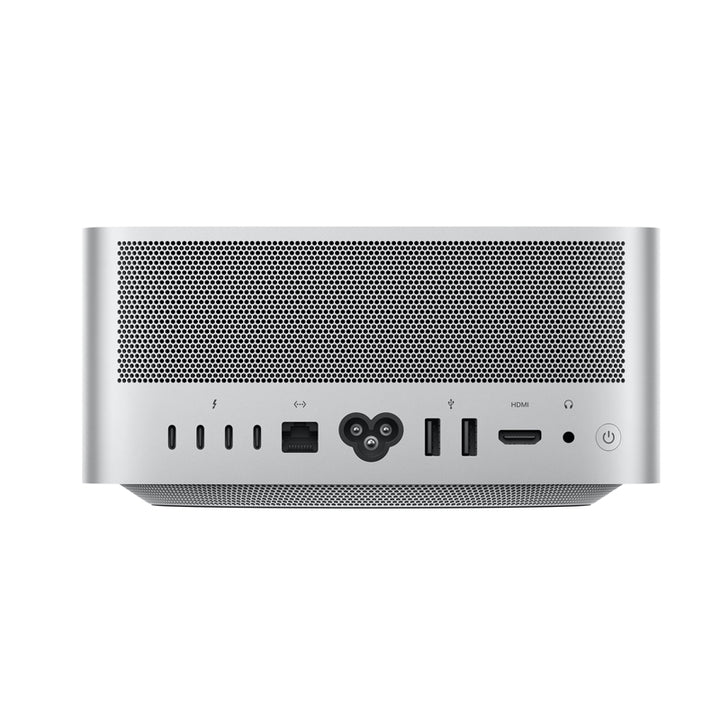

Connections and Expansion

Four Thunderbolt 4 ports with support for:

Thunderbolt 4 (up to 40 GB/s)

DisplayPort

USB 4 (up to 40 GB/s)

USB 3.1 Gen 2 (up to 10 GB/s)

Two USB-A ports (up to 5 GB/s)

HDMI port

10 GB Ethernet

3.5mm headphone jack

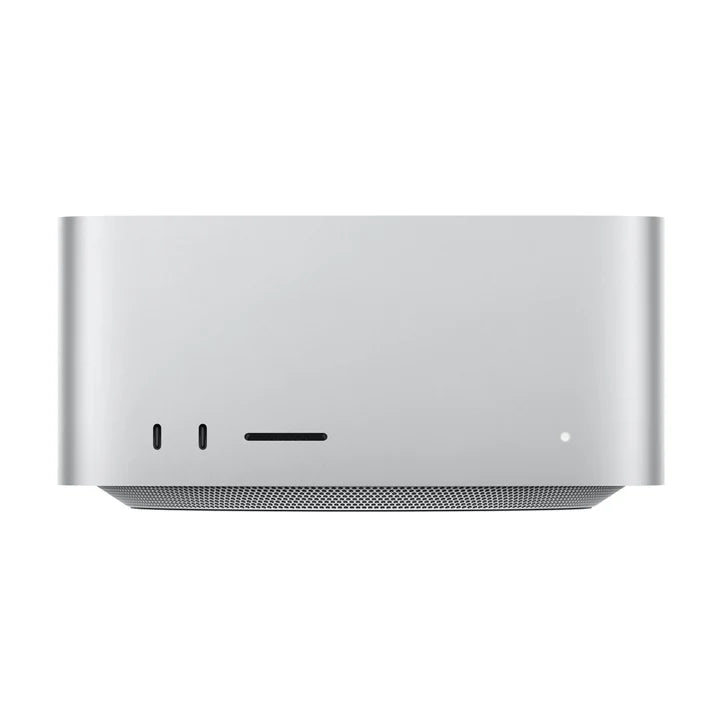

On front (M2 Max):

Two USB-C ports (up to 10GB/s)

SDXC card slot (UHS-II)

Communications

Wi-Fi

Wi-Fi 6E (802.11ax)

Bluetooth

Bluetooth 5.3

Ethernet

10 GB Ethernet (Nbase-T Ethernet with support for 1GB, 2.5GB, 5GB, and 10GB Ethernet using RJ-45 connector)

Size and Weight

Height: 3.7 " (9.5 cm)

Width: 7.7 " (19.7 cm)

Depth: 7.7 " (19.7 cm)

Weight (M2 Max): 5.9 lb (2.7 kg)

Electrical and Operating Requirements

Line voltage: 100–240V AC

Frequency: 50Hz to 60Hz, single phase

Maximum continuous power: 370 Watts

Operating temperature: 50° to 95° F (10° to 35° C)

Storage temperature: –40° to 116° F (–40° to 47° C)

Relative humidity: 5% to 95% noncondensing

Operating altitude: tested up to 16,400 ft (5000 M)

Operating System

macOS

macOS is the most advanced desktop operating system in the world. macOS Ventura makes the things you do most on Mac even better, so you can work smarter, play harder, and go further.

Accessibility

Accessibility features help people with disabilities get the most out of their new Mac Studio. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.
